Aspose.Slides for .NET 20.2 Release Notes

This page contains release notes for Aspose.Slides for .NET 20.2.

Key	Summary	Category
SLIDESNET-41521	Wrong shape fill color	Investigation
SLIDESNET-41674	Extremely slow PPT to PDF Conversion	Feature
SLIDESNET-40977	Support for getting size of paragaph and portion inside table cell text frame	Feature
SLIDESNET-36546	Update custom document properties directly on the source document	Feature
SLIDESNET-41347	Same result when saving without and with excluding fonts	Bug
SLIDESNET-41686	Unknown decision exception when saving into HTML with different ILinkEmbedController implementations	Bug
SLIDESNET-41532	On conversion to PDF on dotnet-Linux platform images are missing	Bug
SLIDESNET-41695	PptxReadException on loading the file	Bug
SLIDESNET-41669	The infinite loop on resaving the PTTX file	Bug
SLIDESNET-41725	PPT to PDF java.lang.NullPointerException	Bug
SLIDESNET-41697	The conversion to PDF lasts too long	Bug
SLIDESNET-41719	PPT to PDF rectangle cannot have width or height equal to 0	Bug
SLIDESNET-41720	PPT to PDF Index of connection site must be less than StartShapeConnectedTo.ConnectionSiteCount	Bug
SLIDESNET-41717	PPT to PDF throws StackOverflowError	Bug
SLIDESNET-41716	PPT to PDF PptxReadException	Bug
SLIDESNET-41610	Text boxes are cut off on converting PPTX to SVG	Bug
SLIDESNET-41715	PPT to PDF PptxReadException	Bug
SLIDESNET-41609	Text overlaps on converting PPTX to SVG	Bug
SLIDESNET-41723	PPT to PDF Requested a name string that is not present in the font	Bug
SLIDESNET-41722	PPT to PDF Specified argument was out of the range of valid values	Bug
SLIDESNET-41664	Issue with the graph while resaving PPTX	Bug
SLIDESNET-41724	PPT to PDF java.lang.NullReferenceException	Bug
SLIDESNET-35593	Slide master gets changed after saving	Bug
SLIDESNET-37830	WordArt changes after saving ppt	Bug
SLIDESNET-37832	Title position is changed on saving presentation	Bug
SLIDESNET-41640	ODP not properly converted to PDF	Bug
SLIDESNET-41681	Aspose Slides HTML EMF Images Missing (Windows Environment)	Bug
SLIDESNET-41332	Part of EMF image is missing in generated PDF with Notes	Bug
SLIDESNET-41727	Missing content in PDF file	Bug
SLIDESNET-41612	Exception on loading Presentation	Bug
SLIDESNET-41533	Image missing in slide thumbanail	Bug
SLIDESNET-41688	Exception on saving presentaiton	Bug
SLIDESNET-41665	Exception: NullReferenceException on embedding OTF font	Bug
SLIDESNET-41694	Application hangs when converting a PPTX to PDF	Bug
SLIDESNET-37474	Improper table rendering in generated PDF	Bug
SLIDESNET-41525	Exception on converting Presentation to PDF	Bug
SLIDESNET-41673	Export to PDF never completes	Bug
SLIDESNET-41676	Wrong font is embedded in exported PDF	Bug
SLIDESNET-41564	Exception on saving presentation with table to PDF	Bug
SLIDESNET-41683	Method WriteAsSvg terminates linux docker container when invoked a second time for the same slide (.NET Core Linux)	Bug
SLIDESNET-40596	OutOfMemory is thrown for converting to PDF in Azure	Bug
SLIDESNET-41566	Chart (emf) missing when converting pptx to pdf	Bug
SLIDESNET-41710	Aspose.Slides PptxReadException when create presentation with comments	Bug
SLIDESNET-40649	Thumbnails not properly generated	Bug
SLIDESNET-37730	Text placed on wrong position in generated thumbnail	Bug
SLIDESNET-40984	Convertering slide with image to PDF disapper the image	Bug

Public API Changes

Slides on Android via Xamarin

Xamarin is the set of tools and libraries that extend .NET and allows to build applications for Android using C# and Visual Studio. We have added support for Xamarin platform, and now you can use it to build your C# application with Aspose.Slides for Android.

Get Text Location in a Table Cell

Method IPortion.GetRect() has been added. This method extends and actually replaces method IPortion.GetCoordinates() which is marked as obsolete now.

Methods IPortion.GetRect() and IParagraph.GetRect() can be applied to text within table cells. The following example shows how the properties work.

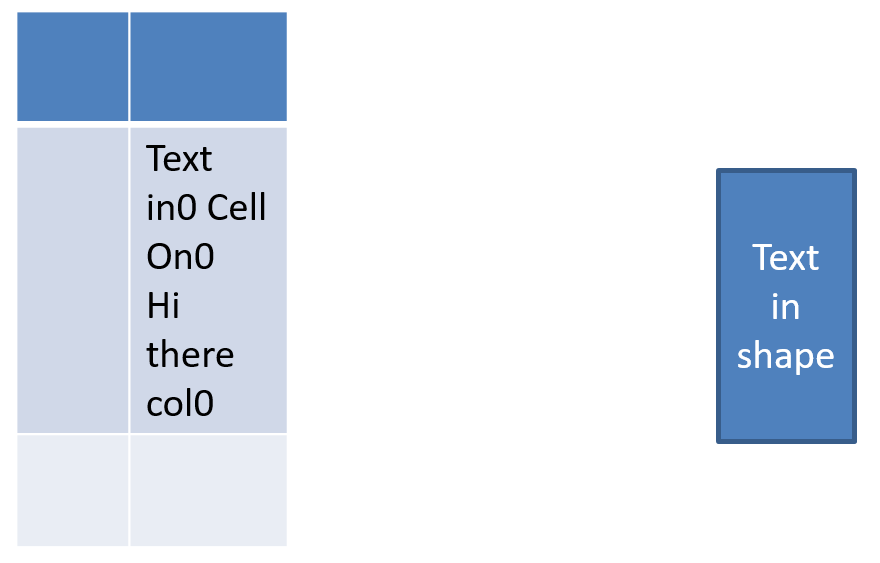

Let’s say, we have a table with some text inside and a simple AutoShape nearby.

The code snippet below generates these objects:

using (Presentation pres = new Presentation())
{
	ITable tbl = pres.Slides[0].Shapes.AddTable(50, 50, new double[] { 50, 70 }, new double[] { 50, 50, 50 });
	IParagraph paragraph0 = new Paragraph();
	paragraph0.Portions.Add(new Portion("Text "));
	paragraph0.Portions.Add(new Portion("in0"));
	paragraph0.Portions.Add(new Portion(" Cell"));

	IParagraph paragraph1 = new Paragraph();
	paragraph1.Text = "On0";

	IParagraph paragraph2 = new Paragraph();
	paragraph2.Portions.Add(new Portion("Hi there "));
	paragraph2.Portions.Add(new Portion("col0"));

	ICell cell = tbl.Rows[1][1];
	cell.TextFrame.Paragraphs.Clear();
	cell.TextFrame.Paragraphs.Add(paragraph0);
	cell.TextFrame.Paragraphs.Add(paragraph1);
	cell.TextFrame.Paragraphs.Add(paragraph2);

    IAutoShape autoShape = pres.Slides[0].Shapes.AddAutoShape(ShapeType.Rectangle, 400, 100, 60, 120);
	autoShape.TextFrame.Text = "Text in shape";
}

The source code snippet below will add a yellow frame to all paragraphs and a blue frame to all portions which contain substring “0”.

1. First, we get coordinates of the left top corner of the table cell:

double x = tbl.X + cell.OffsetX;
double y = tbl.Y + cell.OffsetY;

2. Then, we use IParagrap.GetRect() and IPortion.GetRect() methods to add frame to portions and paragraphs:

foreach (IParagraph para in cell.TextFrame.Paragraphs)
{
   if (para.Text == "")
	   continue;

   RectangleF rect = para.GetRect();

   IAutoShape shape =
	   pres.Slides[0].Shapes.AddAutoShape(ShapeType.Rectangle,
		   rect.X + (float)x, rect.Y + (float)y, rect.Width, rect.Height);

   shape.FillFormat.FillType = FillType.NoFill;
   shape.LineFormat.FillFormat.SolidFillColor.Color = Color.Yellow;
   shape.LineFormat.FillFormat.FillType = FillType.Solid;

   foreach (IPortion portion in para.Portions)
   {
	   if (portion.Text.Contains("0"))
	   {
		   rect = portion.GetRect();
		   shape =
			   pres.Slides[0].Shapes.AddAutoShape(ShapeType.Rectangle,
				   rect.X + (float)x, rect.Y + (float)y, rect.Width, rect.Height);

		   shape.FillFormat.FillType = FillType.NoFill;
	   }
   }
}

3. Now we should add a frame to AutoShape paragraphs:

foreach (IParagraph para in autoShape.TextFrame.Paragraphs)
{
	RectangleF rect = para.GetRect();
	IAutoShape shape =
	    pres.Slides[0].Shapes.AddAutoShape(ShapeType.Rectangle,
        rect.X + autoShape.X, rect.Y + autoShape.Y, rect.Width, rect.Height);

	shape.FillFormat.FillType = FillType.NoFill;
	shape.LineFormat.FillFormat.SolidFillColor.Color = Color.Yellow;
	shape.LineFormat.FillFormat.FillType = FillType.Solid;
}

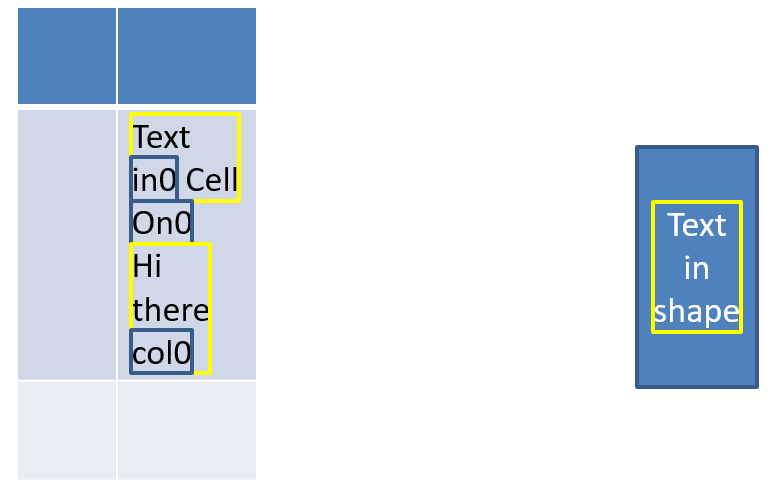

Result:
